Knobless Wonder SSBトランシーバーの製作-受信部の実働試験

2017年 10月 22日

(Short explanation about my Knobless Wonder TRCVR in English is shown below...)
昨日、送信回路の一部を除き、基板の組み立てがほぼ終了したKnobless Wonderである。

今日は朝から受信部の実働試験を行った。
Knobless Wonder SSBトランシーバーの製作-受信部の実働試験_f0205744_12135495.jpg
スピーカーとアンテナを接続し、電源を入れると無事に7Mcの信号が聞こえた。

背景のノイズの音調を聞きながらキャリアー周波数セット用のTCを調整すると、どうやら適切な周波数にキャリアーポイントを設定できそうである。

7.150Mcでラグチューをしている局がいるのだが、キャリアー周波数調整用のTCではゼロインできなかった。何しろ、単一周波数という究極のTRCVRである。運よくゼロインできる周波数に局がいる場合意外、復調音も確認できないという状態である。

聞いてみるうちに、感度とゲインの不足を感じた。Knobless Wonderの出力はせいぜい2Wである。このKnobless Wonder同士で2-way QSOを成立させるという高い目標(!)を達成するためには、QRPのSSB信号をちゃんと受信できる感度が必須となる。

受信部の回路は2石でRFを増幅し、SBMで復調してLM386でSPを鳴らすという超シンプルな構成である。
Knobless Wonder SSBトランシーバーの製作-受信部の実働試験_f0205744_12192726.png
これにどうやって手を加えて感度を改善することができるであろうか。

まずは、RF増幅2段目のコレクター負荷抵抗の値をいじってみた。回路図では220Ωとなっているが手持ちがなかったために300Ωを実装している。これを1KΩと4.7KΩに取り替えて聞こえ方を比べてみたところ、1KΩが300Ωよりもやや感度が勝り、4.7KΩでは300Ωと比較して聞いてわかる程ハッキリと感度が低下することが確かめられた。

負荷抵抗の値を調整しても明らかな感度の改善はできそうもなかったことから、この抵抗を470μHのRFCに換装してみた。

その結果、聞いてハッキリわかる程に感度が上昇した。

その他に、エミッター回路の10Ωをどちらもショートし、LM386の1-8ピン間の1μFを10μFに換装したが、これらの処置では聞いてわかる程の感度の上昇はみられなかった。

以上の改造を施した後でSSGにより感度を確認したところ、-15dBμV(-128dBm)のキャリアーのビートが聞こえることが確認できた。これだけ聞こえれば、Knobless Wonder同士の2-Way QSOの可能性は十分にあると考えられる。

感度確認後、アンテナを接続したところ、丁度TCの可変範囲内の周波数で交信を始めた局があった。1エリアと9エリアの局である。話の内容が了解できることが確認できた。歪が多く感じたが、これはフィルターの通過帯域をはずして無理やりキャリアー周波数を変えてゼロインしたためかとも考えられる。

https://youtu.be/mU-g6kWo-No

受信部の調整はこれでほぼ終了した。不足の部品を注文した後に送信部の調整を行うのは来週以降の課題となる。

ー・・・-
VK3YE's "Knobless Wonder" has been built, and some contacts have already been made by using this unique, single channel, highly simple and interesting 2.5W output 7MHz TRCVR.

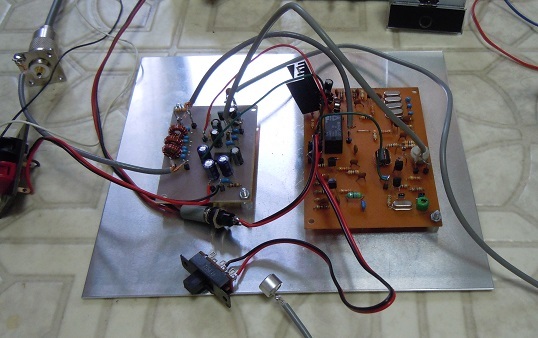

This photo shows my "knobless Wonder" TRCVR built as "Bread Board"-style construction, which is my favorite in experiments of new gears.
Knobless Wonder SSBトランシーバーの製作-受信部の実働試験_f0205744_11044253.jpg
http://fujichrome.exblog.jp/28338321/

The circuit of my Knobless Wonder is basically the same as original VK3YE's design, but some modifications have been made to improve sensitivity, and stability in trasmission. The modifications include substitution of the 220Ω resister in 2nd stage RF amplifier load to a 470μH RFC, changing of some resister value in the driver stage, and employing a 3:1 winding ratio tranformer (FT37-43) in input circuit of the final RF amplifier.

The 2N3904's were used in all stages except for the final RF amplifier, in which a 2SC2314 was employed. The 2SC2314 is a TO126 driver TR used in CB transmitters. The 2SC2314's are generous gifts from JA2GQP OM.

The BD139 was also used in the final stage. It put 2.5W out, same like the 2SC2314 did, but it was so easy to break. I finally gave up using the BD139 in the final stage. Those Chinese BD139's, as well as PCB's, are kind gifts from "Mr.K" (he doesn't want to reveal his call sign Hi).

7.152 MHz HC49/US crystals were used. This frequency crystals are available at a lower price from a well-known mail order parts shop in JA.

My Knobless Wonder recognizes - 15dBμV SSG signals, which seems to be adequate sensitivity for a 40m band receiver. I've already made 3 contacts including those with station in Gifu (490 Km, 300 miles), in Hakodate (290 Km, 170 miles), and in Saitama (400Km, 250 miles).

YouTube video as below shows a part of Contact with the station in Saitama, an 1KW output station.

https://youtu.be/cSWDiP_I3Mw

JA2NKD OM, JA2GQP OM, Mr.K, and I have been building the Knobless Wonder TRCVR. JA2NKD OM and I have already completed its building, and have tried to make 2-way Knobless Wonder QSO, but it was unsuccessful so far, even though we received signals of each other. The 2 way Knobless Wonder QSO will be achieved very soon.

I really appreciate VK3YE's unique and fantastic design of "Knobless Wonder". Making contacts with this QRP TRCVR is highly exiting !

by FujichromeR100 | 2017-10-22 12:35 | Knobless Wonder | Comments(0)
